72 Tray Rotary Rack Oven is perfectly designed for medium scale bakery. It can produce 450 kg mixed items in 8 hours. This type of oven works ideally with all kind of bakery products at Commercial or Industrial level. It distributes heat uniformly in the oven thus ensuring the perfect baking.
Fuel : LPG or Diesel or Wooden pallet or wooden
Tray size: 13″x18″ (tray size can be customized)
Trolley: 4 trolley free
Price:
72 Tray Diesel: 355000 +GST
72 Tray LPG : 370000 +GST
72 Tray Wooden: 385000 +GST
Oven Specification
| Panel Type | Automatic/ Manual |
| Dimension | 86″x 64″x78″ |
| Tray Size | 13″ x 18″ |
| Motor Name | Crompton Grevas |
| No. of Motors | 2 (1 Pc : 1 HP and 1 Pc : 1.5 HP) |
| Power Load | 3 kw |
| Burner | Riello (Italian Made) |
| Fuel Type | Diesel (LPG, Wood, Coal, Electric also available) |
| Maximum Temperature | 50-400° C |
| Electricity | 220 Volt/ 50 Hz |
| Connection | Single or three phase as per order |
| Machine Body Material | SS Grade : 202, 304, 310 MS Grade : CRC |
| No. of Trolleys | 4 (free) |
| Oven Blower Motor | special purpose motor for high temp. application |
Baking Capacity
72 Tray Rotary Oven can produce 450 Kg Bakery items. If you bake 5 to 6 mixed items like rusks, pav, buns, kulcha, you can produce up to 450 kg bakery items.
Fuel type and fuel consumption
72 Tray Rotary Oven is available in diesel, LPG, coal, and electric. Find the fuel type and fuel consumption detail below:
| Oven fuel type | Average hourly consumption when baking |
| Diesel | 3-4 litres/hour |
| LPG | 4.5 kg/ hour |
| Electric | 40 units per hour |
| wood | 40 kg /hour |
Running cost
To set up a 72 tray rotary rack oven, you need to invest approx. 6 to 7 lakhs.
Recommended Add-on

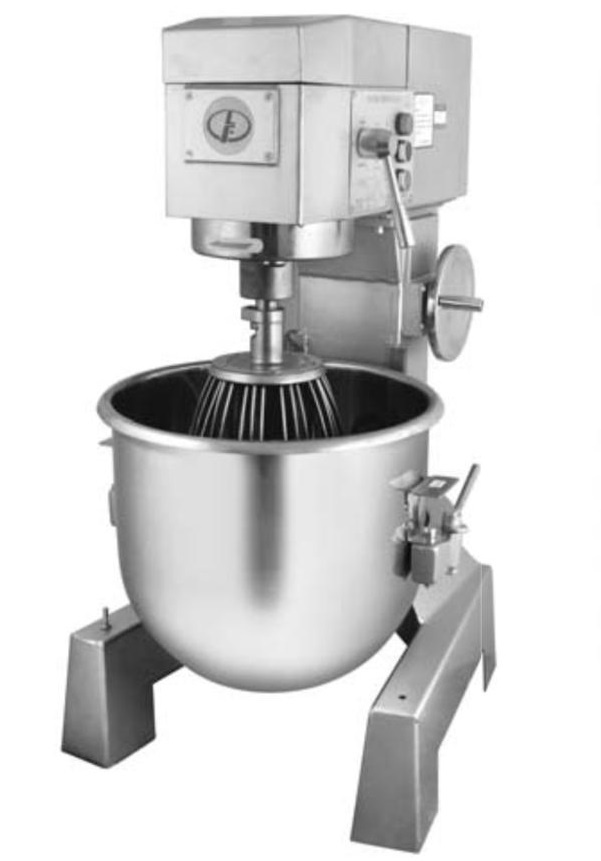

| 1. Spiral Mixer: TBD |
| 2. Planetary Mixer: TBD |
| 3. Cross Mixture/ Slow Speed Mixer: TBD |
| 4. Baking Trays and Moulds: TBD |
| 5. Rusk/ Bread Cutter: TBD |
| 6. Proofer: TBD |
| 7. Bakery Table: TBD |
| 8. Bakery Accessories: TBD |
| 9. Packing Machine: TBD |
Price
Our prices are affordable with reliable quality and efficient design. The price for 72 Tray Rotary Rack Oven is Rs. 350000 + GST
FAQs: 72 Tray Rotary rack Oven
Q1. What is the power and voltage requirement?
Answer: TBD
Q2. Is it covered with warranty period?
Answer: 1 year
Q3. How many trolleys are in 72 Tray Rotary Oven?
Answer: 4 trolleys
